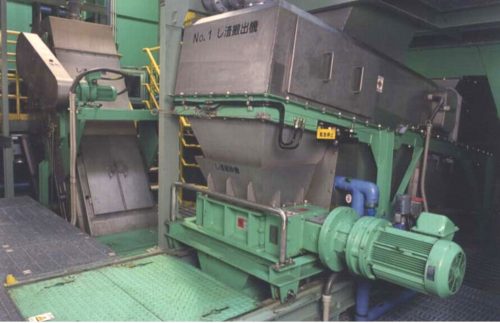

External view
SUMICUTTER twin shaft grinder
Prevents equipment damage and clogging
The SUMICUTTER effectively crushes and grinds cloth, wood chips, empty cans, and other materials, rendering them into fragments that will not damage/clog equipment at sewage treatment facilities. The product also significantly reduces associated workload and expenses. Attesting to its performance and durability around the country, the SUMICUTTER is currently deployed in sewage treatment plants, relay pump stations, and factory wastewater treatment facilities across Japan.
CERAMICS CUTTER for in-line type twin shaft grinder
CERAMICS CUTTER is an abrasion- and corrosion-resistant cutter designed exclusively for the inline SUMICUTTER model, taking the place of conventional metal cutters.
SUMICUTTER interior
CERAMICS CUTTER
Features of the SUMICUTTER
-
Protecting sewage treatment facilities
The SUMICUTTER safeguards against various equipment problems, including damage to and clogging of pumps and dehydrators. The product reduces the labor required to respond to equipment problems and related expenses.
-
Crushing operations underwater
Offering a unique waterproof design, the SUMICUTTER crushes solids in water, eliminating the need for lifting and disposing of solids and solving odor and sanitation issues.
-
High crushing performance
The cutter boasts powerful crushing and grinding performance. It processes wood chips and empty cans with ease and leaves no stagnant solids in front of the crusher.
Typical solids crushed by the SUMICUTTER
-
Self-cleaning function
The SUMICUTTER incorporates an innovative and proprietary self-cleaning function that keeps the cutting section clean at all times, eliminating the need for daily maintenance.
-
Ease of maintenance and inspections
Maintenance requirements are minimal, since enclosed permanent grease lubrication systems are used to lubricate all parts. The simple structure allows easy disassembly—for example, if necessary to replace the cutter.
-
High flow rate handling (with attached screen)
An arc-shaped horizontal screen enables processing of large volumes of sewage, while a scraping rake prevents screen clogging to ensure the equipment operates in a clean and stable state.
Examples of applications
Waterway installation type: Deployed in waterway of grit chamber at treatment facility or relay pump station
In-line type: Deployed in inlet/outlet pipe of sludge condensation equipment or sludge digestion tank facility
Horizontal-type: Deployed in the latter stage of automatic particle-screening equipment or in sludge incineration equipment
The following options are available:
Submersible motor:
Capable of operating continuously for a while under water in case of an emergency
Stainless-steel cutter:
Suitable for sewage treatment plants in corrosive environments, such as near-shore areas, hot spring districts, or industrial parks
Ceramic cutter:
Designed exclusively for the in-line type SUMICUTTER model; highly resistant to abrasion and corrosion
Extension shaft:
The motor may become submerged in the waterway when installed in deep waterways. In such cases, an extension shaft allows the motor to be installed above water.
Control panel:
This dedicated control panel allows easy, comfortable operation of the SUMICUTTER. Since it is provided with an automatic overload-activated reverse rotation function, the equipment can be installed at a place where there are not enough workers.
